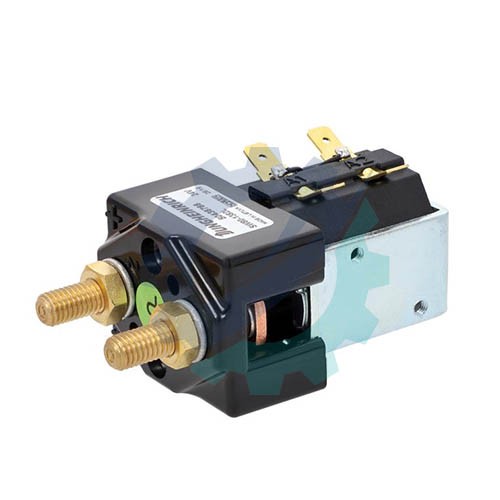

50438766 DC 24V Jungheinrich Contactor

Used for:

ESE 220 50462436 1.05 - 1.10 1
ECR 327/336 50471263 6.05 - 2.12 1
PMWR30N / 40N 51003033 6.05 - 2.12 1
WR6000 / 8000 51004281 6.05 - 2.12 1
EMC 110 (US) 51049451 3.09 - 1
EMC 110 51049452 3.09 - 1
ERE 225 51054860 9.07 - 1
EJE 116/118/120 51056820 4.07 - 6.18 1
EJE 116/118/120 (USA) 51056822 9.07 - 1
EJE C20 51080723 10.07 - 1
PW23 51080763 9.07 - 1
2WP4500 51080764 9.07 - 1
EJE 116/120 (Qingpu) 51089555 10.07 - 8.09 1
EJD K18 51108145 6.08 - 1
PWF11 51115357 3.09 - 1
EMC 110 (2SF2200) 51115358 3.09 - 3.10 1
EMC B10 51115383 3.09 - 1
EMC B10 (US) 51115385 3.09 - 1
PWT11 51115386 3.09 - 1
EMC B10 (2SS2200) 51115387 3.09 - 1
ERE 225 KP 51117301 7.08 - 1
EJE 116n/120n 51148851 9.09 - 1.18 1
ESE 220/320 51163697 2.10 - 1
EMC 110 RK 51198628 1.11 - 1
EJE120N 51226652 1.11 - 2.20 1
EJE 112i 51238480 11.11 - 6.14 1
Reach trucks 51334593 7.13 - 1
EJR 120n 51364828 2.14 - 1.18 1
EJE 112I / 114I 51386655 8.14 - 1
EMC 105/110/B10 51417274 11.14 - 1.22 1
PWF11/PWT11 51417278 11.14 - 1.22 1
EMC 105/110/B10 US 51417285 11.14 - 1.22 1
EMC 110/B10 51417286 11.14 - 1.22 1
EMC 110 RK 51427437 1.15 - 1
EJE C20 (US) 51551697 8.16 - 1
ESE 220/320 (US) 51887731 2.10 - 1

Description:

51042312 El. system, Truck
1 1    51055904 Kit Cable
1.1 1    51042395 Cable, Power / 1U1.L1/2/3-1M1.U/V/W
1.2 1    51038890 Cable, Control / X26-1B6/7-3M3-3B4-..
1.3 1    51054491 Bracket
1.4 4    50446660 Tie, Cable / 5x167/ mit "Fuss"
1.5 1    ( 20 ) 50430754 Tie, Cable / 7,6x360//7,6x338
1.6 1    51059685 Screw / M6 Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
2 1    51072774 Cable, Truck
3 1    51072787 Fan
11 1    51042376 Cable, Power / 2M1.A1/2M1.A2-...
12 1    51039779 Cable, Control / X5-X26-...
12.301 4    50261773 Holder, Fuse
12.302 1    ( 5 ) 51343175 Fuse / 2A/32V
12.303 1    28528420 Fuse / 3,00A 32V FORM B
12.304 1    ( 20 ) 51343179 Fuse / 10A/32V
12.305 1    ( 5 ) 51343183 Fuse / 30A/32V
13 1    51061912 Cable, Power / Q1.2-X30.1
14 1    50438849 Cable, Control
15 1    51169271 Cable
16 1    51169269 Cable
21 1    51025043 Bracket
22 1    50147203 Heatsink
25 1    50438767 Contactor / 24V/120A/1S/100%
26 1    50438766 Contactor
27 2    28414890 Board, Terminal / 1-polig
28 1    50250175 Fuse / 300A/32V
29 1    50250180 Fuse / 150A/32V Affects the following trucks:
-------------- EJE series 1 (VJ000600)
-------------- EJE series 1 US (VJ000650)
-------------- EJE series 2 (VJ000700)
-------------- EJE series 2 US (VJ000750)
-------------- EJE C20 (VJ000800)
-------------- The fuse must not be obstructed on these trucks,
-------------- as this could result in premature failure of the BF2
-------------- fuse.
-------------- Use the following Megafuse type:
-------------- 51097714 / fuse strip
30 1    51257721 Horn / 24V/335Hz
31 1    50020312 Switch, Master
32 1    51037294 Handle
33 1    50024886 Plug
34 1    51037329 Cover
35 2    50429260 Dummy Plug / 10pol
36 1    51146631 Cap / 4Pol
41 8    ( 20 ) 50430752 Tie, Cable / 4,6x200//4,8x186
101 1    51146923 Screw / M3x35 Bolting torque see service manual
102 8    ( 50 ) 24403580 Screw / M4x8 bolting torque see service manual
103 2    50059593 Screw / M5x12 Bolting torque see service manual
104 2    51040032 Screw / M5x16 Bolting torque see service manual
105 1    24404290 Screw / M5x25 Bolting torque see service manual
106 2    50059593 Screw / M5x12 Bolting torque see service manual
107 3    24201090 Screw / M6x45 bolting torque see service manual
108 2    ( 10 ) 24200100 Screw / M6x30 bolting torque see service manual
109 8    24203160 Screw / M8x12 Bolting torque see service manual
201 9    25601240 Lock washer
202 6    51040020 Lock washer
203 18   ( 50 ) 25600850 Lock washer / B8
301 6    ( 20 ) 25301090 Nut / M8 Bolting torque see service manual
990 1    51092751 Drive control group, Drive / AS2412i./ERE
991 1    51067231 Drive control group, Steering / PM2402z./elL/ERE...
