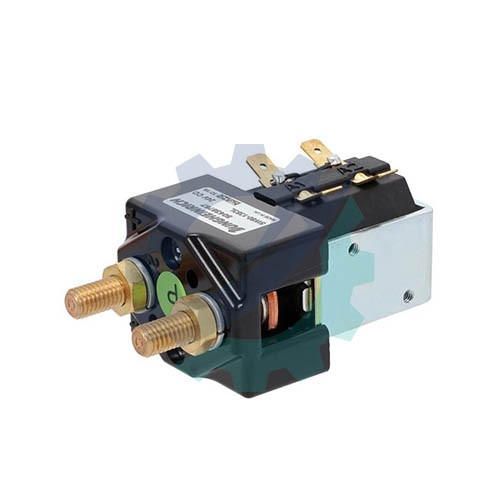

50438767 DC 24V Jungheinrich Contactor

Used for:

EKS 110 E 50430023 6.04 - 12.09 1
EKS 110 ZZ 50430253 6.04 - 12.09 1
EJC 110/112 50444123 12.04 - 8.07 1
WP 10/12 50444205 12.04 - 8.07 1
ECE 118 51043702 12.06 - 3.10 1
EJC 110/112 51047391 8.07 - 10.07 1
WP 10/12 51047469 2.07 - 1
EJC 110/112 (Qingpu) 51052144 9.06 - 6.08 1
ERE 225 51054860 9.07 - 1
EZS 010 51166560 10.09 - 1
EKS 110 E 51173629 1.10 - 1
EKS 110 ZZ 51173630 1.10 - 1
UPC 51179483 10.10 - 11.12 1
UPC 51296056 10.12 - 1

Description:

51070332 Plate, Mounting  Electrics / JUSTCAP
1 1    50450616 Plate, Mounting
2 2    ( 20 ) 24402450 Screw / M5x16
3 2    50153684 Lock washer / 5,3/ Sperrzahn
4 3    ( 50 ) 25500790 Washer / A8,4
5 6    ( 20 ) 25301090 Nut / M8
6 1    50446499 Fuse / 200A/32V Affects the following trucks:
-------------- EJE series 1 (VJ000600)
-------------- EJE series 1 US (VJ000650)
-------------- EJE series 2 (VJ000700)
-------------- EJE series 2 US (VJ000750)
-------------- EJE C20 (VJ000800)
-------------- The fuse must not be obstructed on these trucks,
-------------- as this could result in premature failure of the BF2
-------------- fuse.
-------------- Use the following Megafuse type:
-------------- 51100334 / fuse strip
7 1    28404160 Board, Terminal / 3-polig
8 1    51169263 Cable, Power / 150mm/blau/blue/bleu
9 3    24203160 Screw / M8x12
10 9    26915614 Lock washer / 8,4/ Sperrzahn
12 1    50438767 Contactor / 24V/120A/1S/100%
13 1    28414890 Board, Terminal / 1-polig
14 1    50424094 Screw
15 1    50440813 Label, El. Fuses
16 2    ( 50 ) 24402250 Screw / M4X12
17 1    50439129 Horn / 24V/335Hz Note replacement of material number.
-------------- The holder can also be ordered separately in this case.
18 1    24203560 Screw
19 1    00002895 Lock washer / 6,4/ Sperrzahn
20 2    ( 50 ) 24403580 Screw / M4x8
21 4    50120559 Lock washer / 4,3/ Sperrzahn
22 3    00002895 Lock washer / 6,4/ Sperrzahn
23 3    ( 20 ) 24202420 Screw / M6X16
24 1    50454668 Cable, Truck
25 1    50452166 Cable, Power
26 1    50445052 Cable, Control / U8/X6-....
26.190 2    50261773 Holder, Fuse
26.210 1    ( 5 ) 51343175 Fuse / 2A/32V
26.220 1    ( 20 ) 51343179 Fuse / 10A/32V
26.240 1    28617530 Diode / 1N5408
27 3    ( 20 ) 50430751 Tie, Cable / 3,5x150//3,6x140/sw
28 3    -------------- Label
29 1    50471951 Fan / 12V
30 4    24404050 Screw
32 1    51169264 Cable, Power / 170mm/red/rot/rouge
980 1    51046661 Drive control / AS2409K.F/H/JUSTCAP
