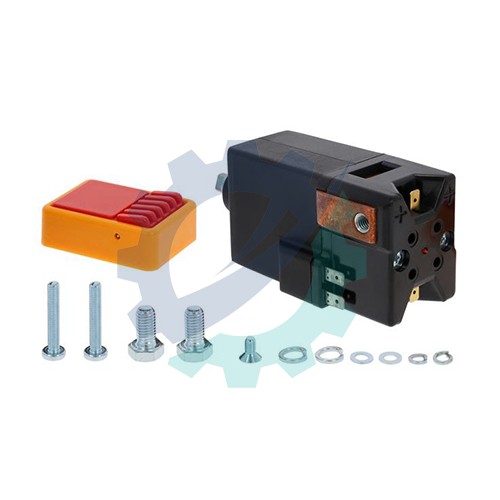

51017545 Jungheinrich emergency stop switch

Used for:

EFG 422-430 50112076 10.99 - 10.04 1
EFG-DHac 10SP 50312856 7.02 - 12.03 1
EFG-DHac 10MP 50312858 7.02 - 12.03 1
EFG-DHac 10LSP 50312859 7.02 - 12.05 1
EFG-DHac 10LMP 50312860 7.02 - 12.04 1
EFG-DHac 12,5SP 50312861 7.02 - 12.05 1
EFG-DHac 12,5MP 50312862 7.02 - 1
EFG-DHac 15SP 50312863 7.02 - 12.05 1
EFG-DHac 15MP 50312864 7.02 - 1
EFG-DHac 10LMP 51006581 8.04 - 12.09 1
EFG 110 - 115 51006585 1.04 - 12.16 1
EFG 422-430 51022447 11.04 - 11.09 1
EFG 425k MP 51022454 11.04 - 1.08 1
EFG 110-115 51157725 11.09 - 12.16 1
EFG 115 SP 51339359 11.09 - 1
EKX 513/515K S/F I 52022339 2.04 - 12.07 1
EFG 535-550 52025131 1.04 - 11.09 1
EFG 550 MP 52025139 1.04 - 11.05 1
FB 40-50 52036269 4.05 - 11.09 1
EP 45N (CAT) 52036270 4.05 - 11.09 1

Description:

52025787 Electrical System / SP/MP
10 1    52025788 Contactor rack
20 1    52025959 Kit Cable
21 2    52000129 Cable, Control
22 1    52000131 Cable, Control
30 1    05068696 Fan
30.10 4    05058802 Fan
30.15 4    50055752 Seal, Interface / MATE-N-LOK; 2pol Pos. without illustration.
30.20 4    05090779 Guard
30.30 1    51041849 Cover
30.60 2    04569204 Nut
30.70 8    00028107 Self-tapping screw
35 1    51011135 Cable, Control / Adapter/ Sitz Pos. without illustration.
40 1    52040615 Bracket
45 1    52014213 Cable, Control
45.40 1    28418380 Housing, Plug / MATE-N-LOK; 4pol
45.45 1    50055757 Wire seal / MATE-N-LOK; 4pol
45.46 1    50055758 Seal, Interface / MATE-N-LOK; 4pol
45.50 1    00020820 Plug part
45.60 1    05004962 Grommet
45.70 1    00462178 Grommet
50 1    52040309 Holder, Fuse
50.10 1    28528600 Holder, Fuse
50.20 1    52041422 Fuse / Streifen/425A/80V
50.50 1    52040217 Bracket
50.60 2    04621237 Screw Attention! Self-tapping screw / cutting screw!
-------------- Use only self-tapping / cutting screws of the same
-------------- design.
-------------- Use self-tapping screw / cutting screw only once!
-------------- After removal insert/use a new screw.
-------------- Using a different screw will damage the thread,
-------------- insufficient connection stability.
50.100 2    52019334 Bracket
50.110 2    52023381 Washer
50.120 2    52023288 Nut
56 1    05087495 Bracket
60 1    52038019 Input / output Interface / CANION
70 1    05049992 Bracket
77 1    05092014 Nut
85 1    05100650 Bracket
90 1    51017545 Stop, Switch/Contactor
90.10 1    69384970 Switch part
100 1    26906860 Key switch / 702 schwarz bolting torque see service manual
110 1    52026170 Horn / 24V/335Hz
120 1    51057376 Module
130 1    51098704 Switch
170 1    26915459 Transformer, Voltage / 38-96V/24V 125W
171 1    04651989 Clamp
172 1    ( 20 ) 25303400 Nut / M8
173 3    04668473 Lock nut
175 1    ( 20 ) 24202210 Screw / M6x16
190 7    04513817 Clip nut
200 2    00012862 Screw
210 2    00000551 Washer
220 6    04668473 Lock nut
230 1    04562221 Lock nut / M8
240 3    05004211 Screw / M8x16
250 2    05045696 Clamping piece
251 2    00001593 Screw
252 2    00001101 Lock washer
255 1    05100681 Seal
260 10  00015889 Tie, Cable / l=389
270 1    05110772 Trim Protection Length required when ordering
280 1    05096789 Hose / n=m Length required when ordering
290 1    05096790 Clamp
