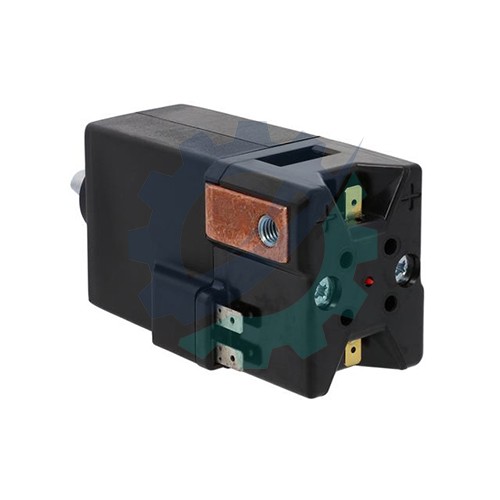

51159464 Jungheinrich emergency stop switch SD250AB-50

Used for:

ETM/V 214/216 50314466 12.03 - 10.12 1
ETM/V 320/325 50441297 12.04 - 2.14 1
ETV 110/112 50452703 11.05 - 6.14 1
ESE 420/430 50454694 5.05 - 7.09 1
ETV 114/116 50468574 11.05 - 12.11 1
ETR 314/320 51026197 6.06 - 11.09 1
ETV C 16 51069954 6.08 - 5.15 1
ETV C 20 51069957 6.08 - 4.15 1
EZS 570 51095120 6.08 - 1
ESE 420/430 51148995 7.09 - 1
ETVQ 20/25 51171558 9.10 - 1
ETM/V 214/216 (US) 51205717 1.11 - 10.12 1
ETV 110/112 (US) 51205725 1.11 - 6.14 1
ETV 114/116 (US) 51205726 1.11 - 10.11 1
ETV C 16 (US) 51205727 1.11 - 5.15 1
ETV C 20 (US) 51205729 1.11 - 4.15 1
ETM/V 320/325 (US) 51205730 1.11 - 2.14 1
ETVQ 20/25 (US) 51205731 1.11 - 1
ETV 114n/116n 51209125 7.11 - 1.18 1
ETM/V 214-325 Cab 51213211 9.11 - 1
ETV C 16 (CN) 51242449 12.11 - 5.15 1
ETV 110/112 (CN) 51242450 12.11 - 6.14 1
ETV 114/116 (CN) 51242452 11.11 - 1.12 1
ETM/V 214/216 (CN) 51242453 12.11 - 10.12 1
ETV C 20 (CN) 51242457 12.11 - 4.15 1
ETM/V 320/325 (CN) 51242459 12.11 - 2.14 1
ETVQ 20/25 (CN) 51242461 12.11 - 1
Reach trucks 51334593 7.13 - 1
EZS 570/ 580/ 590 51413276 4.15 - 1
ETV 118n/ 120n 51424956 1.14 - 1.18 1
ETV 114n/116n 51630466 1.18 - 11.22 1
ETV 118n/ 120n 51630469 1.18 - 1
ETV114n HELI 51634078 5.17 - 1
ETV 118n HELI 51634079 5.17 - 1
EZS 570/ 580/ 590 (US) 51887734 4.15 - 1

Description:

50297477 Plate, Mounting  Electrics
11 1    50305146 Fastening element / D=7mm (Snaplock)
20 1    50305121 Cable, Truck / SB/LB/320A
21 2    24201090 Screw / M6x45
22 2    25600790 Lock washer
30 1    50305131 Bracket, Hood
31 3    24004660 Screw
35 2    50305148 Fastening element / Snaplock/D=10mm
40 1    50297461 Holder, Fuse
41 2    ( 50 ) 24402250 Screw / M4X12
42 2    25601240 Lock washer
50 2    41031820 Holder, Fuse
51 2    ( 50 ) 24403580 Screw / M4x8
52 2    25601240 Lock washer
60 1    50297471 Contactor / SW60B-8/1S/48V
61 2    ( 50 ) 24403580 Screw / M4x8 Secured by Loctite 243.
70 1    51159464 Stop, Switch/Contactor
71 2    24404260 Screw / M5x16
72 2    ( 50 ) 25500790 Washer / A8,4
75 2    ( 20 ) 24002340 Screw / M8X16
76 2    25600930 Washer spring / A8
80 1    50263105 Switch part
85 1    50263104 Switch handle (emergency stop)
90 1    50297462 Copper bridge
91 1    50312879 Cable, Power
95 1    50312880 Cable, Power
100 1    50305383 Cable, Power
105 6    ( 10 ) 25500170 Washer / D=10,5
110 1    28516750 Fuse / 355A/80V
111 2    28516730 Fuse / 250A/80V
112 9    ( 50 ) 25500900 Washer / 10,5
113 6    ( 20 ) 25601090 Washer spring / d=10
114 6    ( 50 ) 25301100 Nut / M10
120 1    50305381 Cable, Control
121 3    ( 50 ) 25500410 Washer / D=5,3mm
122 3    ( 50 ) 25601190 Lock washer / A5
123 3    ( 50 ) 25300490 Nut / M5
