Excavators, road rollers, tamping machines, cutters, grinders, loaders, air purifiers, industrial vacuum cleaners, industrial dehumidifiers, lawn mowers, UV disinfection lamps, pressure washers cumulative timers, ACDC energized hour meters
Timing Function
A. Total time: The total working time of the vehicle is recorded cumulatively, and the total working time cannot be cleared
B. Timing range: 0-99999H

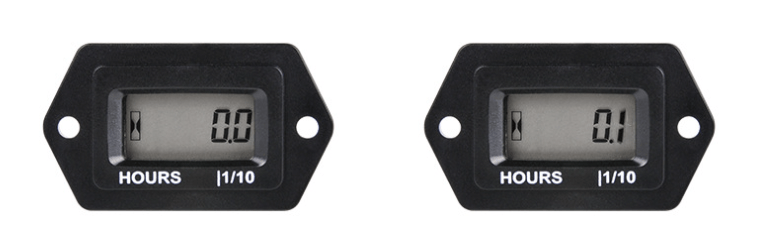

C. Timing accuracy: work for 6 minutes, display 0.1
D. Voltage range: AC/DC 5-277V
Timing Mode

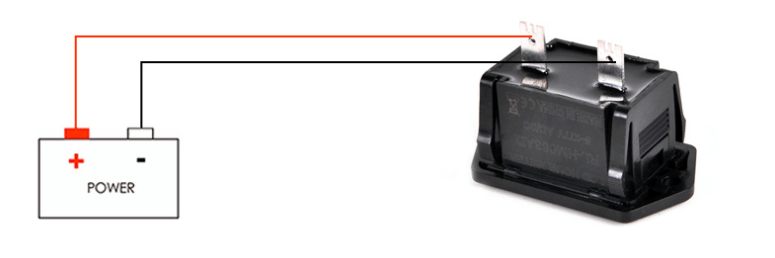

AC/DC power-on timing: the pin has no polarity, can be arbitrarily connected to the positive and negative poles of the power supply, after detecting the voltage signal, the timer starts to count.
Adaptable to multiple environments
Sealed with epoxy resin, waterproof grade IP68
The installation is firm and does not fall off easily
Recessed mounting, snap-on fastening to prevent detachment.
Data storage, not easy to lose
A. Built-in chip, can store data
B. Automatic storage of data when stopping work, not easy to lose.
Complete accessories, reliable transportation
A. Accessories: spring *2 sheath *2 screw *2 cushion rubber pad *1
B. White box packaging, which is equipped with a lined box, which is not easy to break
Product Parameters:

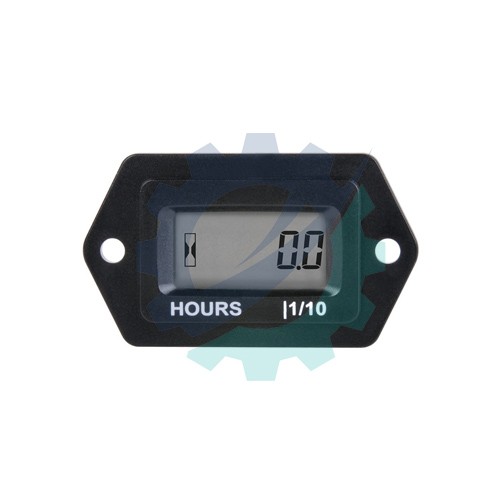

Product model: TT-HM063AD
Product Name: Industrial Timer
Timing range: 0-9999H
Timing accuracy: 0.1H/1H
Voltage range: AC/DC5-277V
Timing method: ACDC
Display mode: LCD

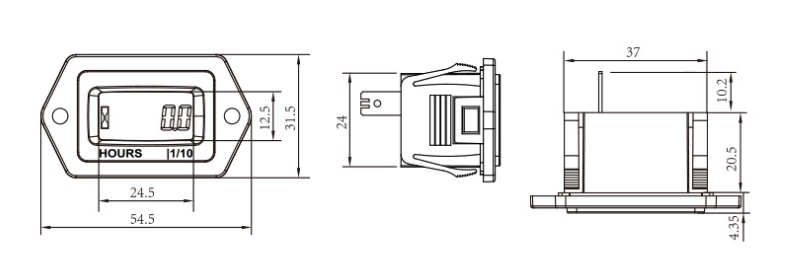

Display size: 25*12.5MM
PRODUCT SIZE:54.5*31.5*35MM
Waterproof grade: IP68
Installation size: 37.5*24.5MM
Installation method: flush mounted
Battery type: CR2050
Housing material: ABS
Packing method: white box packaging
Packing size: 62*49*40MM
