Home     Products     Battery Connector       Battery Connector SB120A
  • Battery Connector SB120A

Battery Connector SB120A

  • Product Item : TT-SB-002
  • Category:Battery Connector
  • Name:Battery connector
  • Rated Current:120A
  • Rated Voltage:600V
  • Product description:Forklift parts One-stop parts supplier for forklifts forklift connector,forklift battery connector,forklift battery connector
  • INQUIRY   EMAIL
Forklift Charger, Forklift Battery Connector.
Anderson, REMA battery connector.

Flexible plugging
The non-slip design is added to the side of the connector, which can be quickly plugged
and inserted, optimizing the grip feeling, and ergonomic design

Color matching
Use according to color difference to prevent different voltage plugs from docking,
safety hazards, and protect your safe use

Insulated flame retardant housing
The shell is made of high-quality PC flame retardant material, which is safe, wear-resistant,
pressure-resistant, and can ensure the stability of use in complex environments
It is not easy to burn after fire, and it will be automatically extinguished after leaving the source

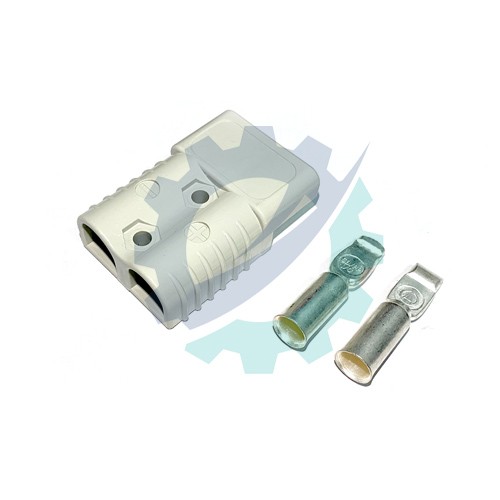

Conductive terminals
Copper silver plating is adopted, copper soft and hard is moderate, easy to crimp, and the
surface silver plating has good conductivity.

Internal shrapnel
It adopts thickened high-precision manganese steel vacuum quenching, elastic enough

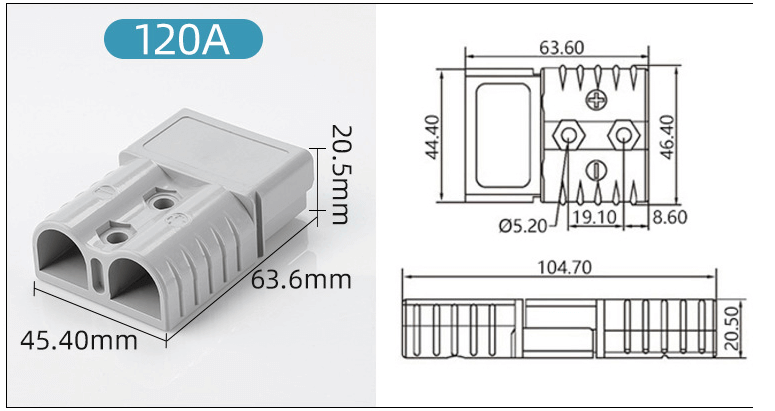

Size and Specification


Models are as follows:
Battery Connector SB50A 600V.
Battery Connector SB120A 600V.
Battery Connector SB175A 600V.
Battery Connector SB350A 600V.
Battery Connector SBE80A 600V.
Battery Connector SBE160A 600V.
Battery Connector SBE175A 600V.
Battery Connector SBE350A 600V.


SB series-50A, 120A, 175A, 350A connector housing, gender-neutral with contacts.
Anderson Power Products's series of contact connector housings are mechanically keyed color-coded housings to prevent
accidental mating of devices when operating at different voltages.
Its non-matching category design ensures versatility and convenience, and the one-piece shell is both sturdy and practical.
These connector housings and contacts are rugged products capable of 10000 connection / disconnect cycles, and silver-plated
contacts provide long service life at high power.
The series also has flat friction contacts and a rated voltage of 600V UL.

Features and advantages:
Mechanical keying housing-prevents accidental matching of components operating at different voltages.
Flat wipe contact-this system achieves minimum contact resistance at high current, and the wipe operation cleans the contact
surface during disconnection, ensuring better conductivity and longer service life.
Solid material.
Fast and easy assembly.
50A, 120A, 175A and 350A models are available.
Operating temperature range-20 °C to + 105 °C.
Flammability rating UL94 VMI 0
